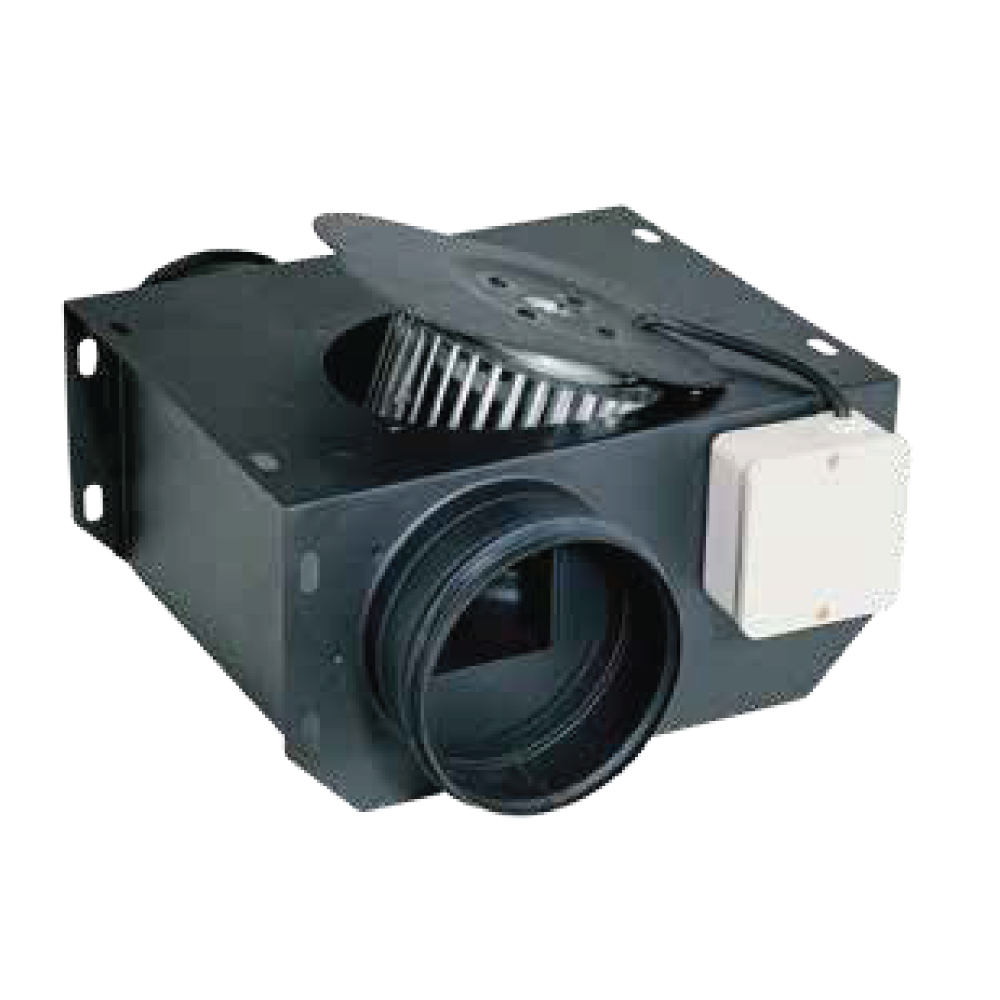

Super Slim Cabinet Centrifugal Inline Fan

Casing

• Super Slim Design:
  • Height: 152mm – 172mm only.
  • Constructed with steel and coated with anti-rust epoxy powder for durability and corrosion resistance.

Motor

• Type: High-efficiency external rotor motor.
• Features:
  • Moisture-resistant, ideal for humid and damp environments like bathrooms and toilets.
  • Permanently lubricated ball bearings for reliable, maintenance-free operation.
  • Class F insulation for enhanced performance.
  • Speed controllable for flexible operation.
  • Built-in thermal protection device for safety.
  • Operates in ambient temperatures ranging from -14°C to 40°C.

Impeller

• Design: Well-balanced aluminum high-pressure forward curved centrifugal fan.
• Performance:
  • Ensures quiet and stable operation.
  • Integrated hub and impeller for precise balance and short axial length.

Easy Maintenance

• Accessibility: Motor and impeller can be inspected and maintained via an access panel on the casing without disassembling the complete unit.
• Convenience: Detachable impeller and motor for easy and efficient maintenance.
