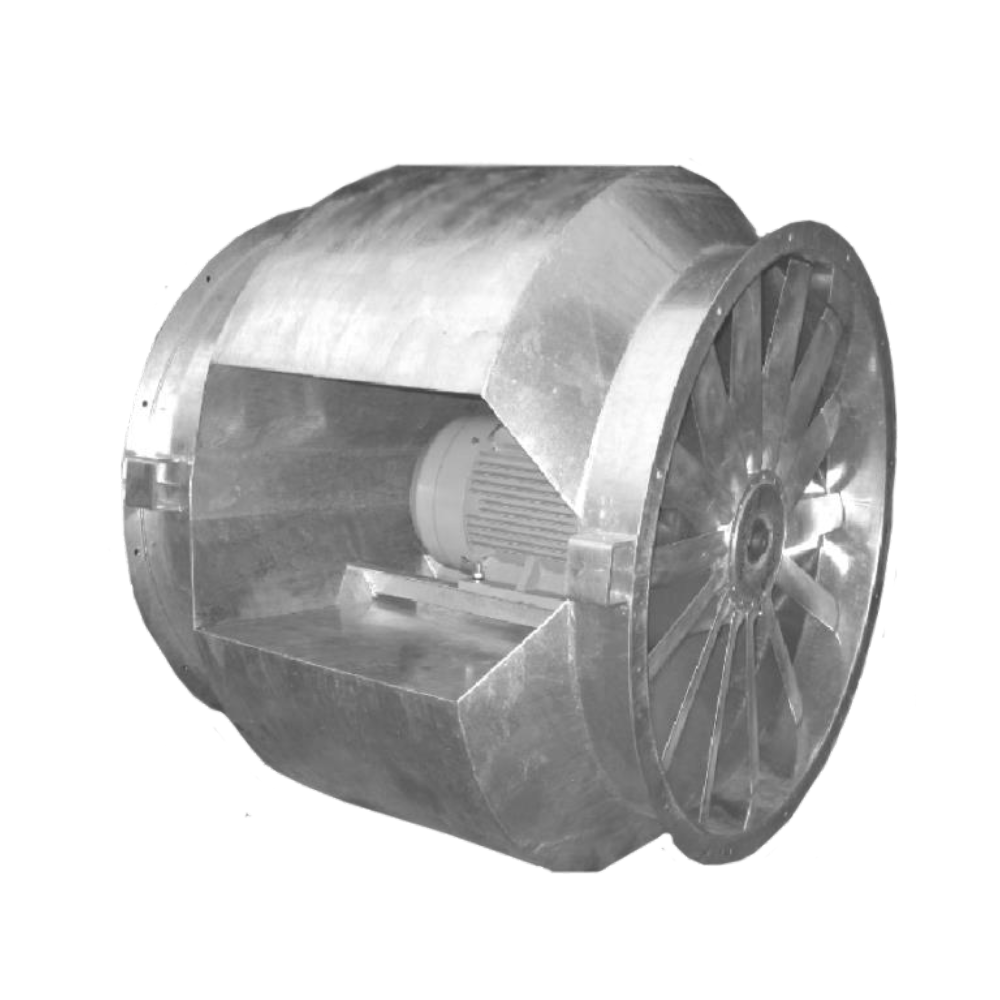

Bifurcated Fan (BAPA VASE)
The bifurcated fan (BAPA) is made for application where the motor is required to be outside of the airstream and where the airstream is laden with grease/contaminants. The units are compact in size and use for in-line application for ease of mounting to ductwork
Sizes range from 500mm to 1000mm fan diameter.
It is suitable for factory, kitchen, pharmaceutical, bakery and welding exhaust.
-
Construction:
- Double flanged casing made of mild steel with anti-corrosion painting as standard and hot-dipped galvanized as an option.
-
Operating Temperature:
- All standard motors are designed to operate at ambient temperatures ranging from -20°C to 40°C.
-
Motors:
- Totally enclosed fan cooled (TEFC) motor with IP 55 protection.
-
Impeller:
- Standard blade construction is high pressure die cast aluminum alloy.
- The pitch angle can be adjusted manually.
-
Airflow Direction:
- Air flow from impeller to motor is fitted as standard.
- Air flow from motor to impeller can be supplied upon request.
-
Construction:
- Double flanged casing made of mild steel with anti-corrosion painting as standard and hot-dipped galvanized as an option.
-
Operating Temperature:
- All standard motors are designed to operate at ambient temperatures ranging from -20°C to 40°C.
-
Motors:
- Totally enclosed fan cooled (TEFC) motor with IP 55 protection.
-
Impeller:
- Standard blade construction is high pressure die cast aluminum alloy.
- The pitch angle can be adjusted manually.
-
Airflow Direction:
- Air flow from impeller to motor is fitted as standard.
- Air flow from motor to impeller can be supplied upon request.
